NUC 支持 ECC 内存的机器

小渣渣

ECC内存，即应用了能够实现错误检查和纠正技术（ECC）的内存条。一般多应用在服务器及图形工作站上，这将使整个电脑系统在工作时更趋于安全稳定。ECC是“Error Checking and Correcting”的简写，中文名称是“错误检查和纠正”。

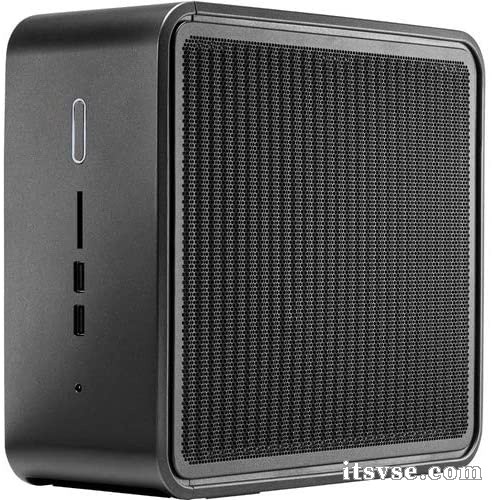

NUC9VXQNX（石英峡谷）

石英峡谷和幽灵峡谷外观几乎一摸一样，石英峡谷是面向商用工作站版本，幽灵峡谷是面向家用游戏玩家。



内存支持双通道笔记本内存，最高64GB 2400MHz或32GB 2666MHz（需单独购买），支持ECC内存（仅 Intel Xeon E 2286M 可用）

NUC9xyQNX_UserGuide.pdf (1.01 MB, 下载次数: 0)

2024-12-11 09:41 上传

点击文件名下载附件

参考：https://www.servethehome.com/intel-nuc9vxqnx-nuc-review-xeon-quartz-canyon/

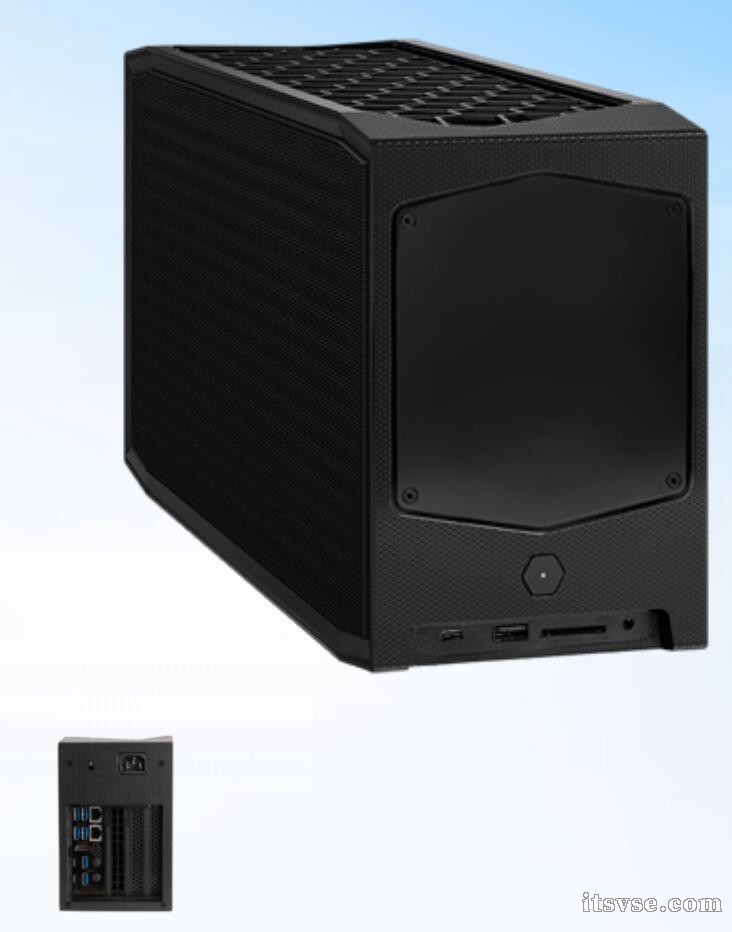

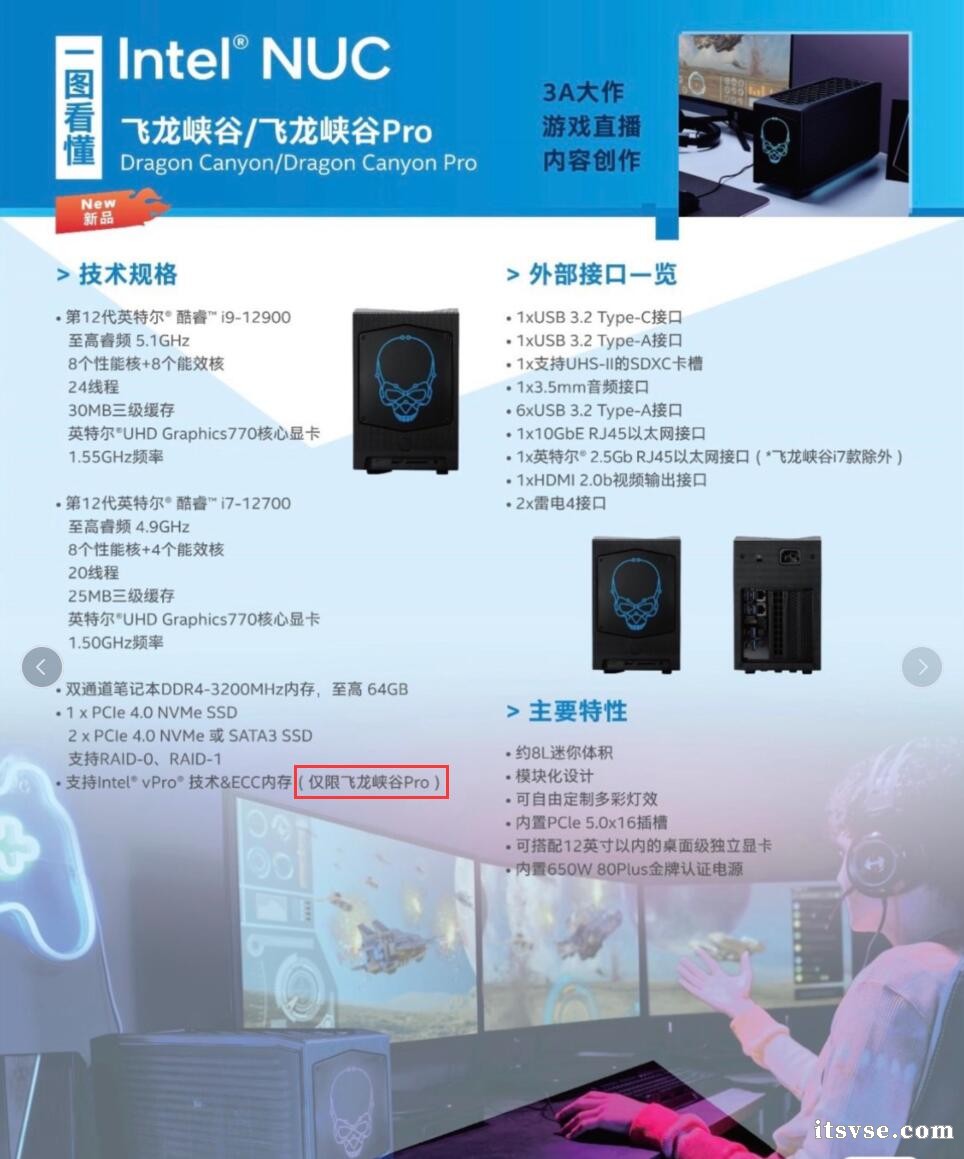

NUC 12 Pro X Kit（NUC12DCMv9、飞龙峡谷）

NUC12DCMv9 使用的 W680 芯片组支持 ECC。他们取消了主流插槽 Xeon，ECC 现在只需要 W 芯片组。




Dragon-Canyon-v9-NUC12DCMv9-v1.3.pdf (1.41 MB, 下载次数: 4)

2024-12-11 09:41 上传

点击文件名下载附件

参考：https://www.asus.com.cn/displays-desktops/nucs/nuc-kits/nuc-12-pro-x-kit/techspec/

小渣渣

Intel NUC8i5BEH 2700元配一台工作主机
https://www.itsvse.com/thread-9573-1-1.html

小渣渣

ECC-SODIMM 内存

https://www.kingston.com.cn/cn/memory/server-premier/ddr4-3200mts-ecc-unbuffered-sodimm
https://nemixram.com/products/ddr4-3200mhz-pc4-25600-ecc-sodimm-2rx8?variant=45411283501368

小渣渣

内存测试工具：memtest86

NEMIX RAM 评测：

https://forums.servethehome.com/index.php?threads/what-are-your-experiences-with-nemix-ram.41476/
https://forums.anandtech.com/threads/beware-of-nemix-ram.2583432/

小渣渣

使用 Memtest86 Pro v11 对内存进行诊断测试
https://www.itsvse.com/thread-10898-1-1.html

小渣渣

英特尔® 酷睿™ i9 处理器产品搜索：https://www.intel.cn/content/www/cn/zh/products/details/processors/core/i9/products.html

小渣渣

HP Z2 G9 Mini
最高 64 GB RAM，最高 8 TB
https://www.hp.com/us-en/workstations/z2-mini.html
https://h20195.www2.hp.com/v2/GetDocument.aspx?docname=c07967257
https://h20195.www2.hp.com/v2/GetDocument.aspx?docname=c08109685


HP Z2 G9 SFF（Small Form Factor）
最高 128 GB RAM，最高 36 TB
https://www.hp.com/us-en/workstations/z2-small-form-factor.html
https://h20195.www2.hp.com/v2/Ge ... umpid=va_n2rbpyafm8
https://h20195.www2.hp.com/v2/Ge ... umpid=va_n2rbpyafm8
https://h20195.www2.hp.com/v2/Ge ... umpid=va_n2rbpyafm8

ThinkStation P3 Ultra SFF
最高 192GB RAM
https://psref.lenovo.com/Product ... tation_P3_Ultra_SFF

Processor Name	Cores	Threads	Base Frequency	Max Frequency	Cache	Memory Support	Processor Graphics
Core i5-12500	6 (6 P-core + 0 E-core)	12	P-core 3.0GHz	P-core 4.6GHz	18MB	DDR5-4800	Intel® UHD Graphics 770
Core i7-12700	12 (8 P-core + 4 E-core)	20	P-core 2.1GHz / E-core 1.6GHz	Max Turbo up to 4.9GHz / P-core 4.8GHz / E-core 3.6GHz	25MB	DDR5-4800	Intel® UHD Graphics 770
Core i9-12900	16 (8 P-core + 8 E-core)	24	P-core 2.4GHz / E-core 1.8GHz	Max Turbo up to 5.1GHz / P-core 5.0GHz / E-core 3.8GHz	30MB	DDR5-4800	Intel® UHD Graphics 770
Core i3-13100	4 (4 P-core + 0 E-core)	8	P-core 3.4GHz	P-core 4.5GHz	12MB	DDR5-4800	Intel® UHD Graphics 730
Core i5-13400T	10 (6 P-core + 4 E-core)	16	P-core 1.3GHz / E-core 1.0GHz	P-core 4.4GHz / E-core 3.0GHz	20MB	DDR5-4800	Intel® UHD Graphics 730
Core i5-13600	14 (6 P-core + 8 E-core)	20	P-core 2.7GHz / E-core 2.0GHz	P-core 5.0GHz / E-core 3.7GHz	24MB	DDR5-4800	Intel® UHD Graphics 770
Core i5-13600K	14 (6 P-core + 8 E-core)	20	P-core 3.5GHz / E-core 2.6GHz	P-core 5.1GHz / E-core 3.9GHz	24MB	DDR5-5600	Intel® UHD Graphics 770
Core i7-13700	16 (8 P-core + 8 E-core)	24	P-core 2.1GHz / E-core 1.5GHz	Max Turbo up to 5.2GHz / P-core 5.1GHz / E-core 4.1GHz	30MB	DDR5-5600	Intel® UHD Graphics 770
Core i7-13700K	16 (8 P-core + 8 E-core)	24	P-core 3.4GHz / E-core 2.5GHz	Max Turbo up to 5.4GHz / P-core 5.3GHz / E-core 4.2GHz	30MB	DDR5-5600	Intel® UHD Graphics 770
Core i7-13700T	16 (8 P-core + 8 E-core)	24	P-core 1.4GHz / E-core 1.0GHz	Max Turbo up to 4.9GHz / P-core 4.8GHz / E-core 3.6GHz	30MB	DDR5-5600	Intel® UHD Graphics 770
Core i9-13900	24 (8 P-core + 16 E-core)	32	P-core 2.0GHz / E-core 1.5GHz	Max Turbo up to 5.6GHz / P-core 5.2GHz / E-core 4.2GHz	36MB	DDR5-5600	Intel® UHD Graphics 770
Core i9-13900K	24 (8 P-core + 16 E-core)	32	P-core 3.0GHz / E-core 2.2GHz	Max Turbo up to 5.8GHz / P-core 5.4GHz / E-core 4.3GHz	36MB	DDR5-5600	Intel® UHD Graphics 770
Core i9-13900T	24 (8 P-core + 16 E-core)	32	P-core 1.1GHz / E-core 0.8GHz	Max Turbo up to 5.3GHz / P-core 5.1GHz / E-core 3.9GHz	36MB	DDR5-5600	Intel® UHD Graphics 770
Core i3-14100	4 (4 P-core + 0 E-core)	8	P-core 3.5GHz	P-core 4.7GHz	12MB	DDR5-4800	Intel® UHD Graphics 730
Core i5-14400T	10 (6 P-core + 4 E-core)	16	P-core 1.5GHz / E-core 1.1GHz	P-core 4.5GHz / E-core 3.2GHz	20MB	DDR5-4800	Intel® UHD Graphics 730
Core i5-14600	14 (6 P-core + 8 E-core)	20	P-core 2.7GHz / E-core 2.0GHz	P-core 5.2GHz / E-core 3.9GHz	24MB	DDR5-5600	Intel® UHD Graphics 770
Core i5-14600K	14 (6 P-core + 8 E-core)	20	P-core 3.5GHz / E-core 2.6GHz	P-core 5.3GHz / E-core 4.0GHz	24MB	DDR5-5600	Intel® UHD Graphics 770
Core i7-14700	20 (8 P-core + 12 E-core)	28	P-core 2.1GHz / E-core 1.5GHz	Max Turbo up to 5.4GHz / P-core 5.3GHz / E-core 4.2GHz	33MB	DDR5-5600	Intel® UHD Graphics 770
Core i7-14700K	20 (8 P-core + 12 E-core)	28	P-core 3.4GHz / E-core 2.5GHz	Max Turbo up to 5.6GHz / P-core 5.5GHz / E-core 4.3GHz	33MB	DDR5-5600	Intel® UHD Graphics 770
Core i7-14700T	20 (8 P-core + 12 E-core)	28	P-core 1.3GHz / E-core 0.9GHz	Max Turbo up to 5.2GHz / P-core 5.0GHz / E-core 3.7GHz	33MB	DDR5-5600	Intel® UHD Graphics 770
Core i9-14900	24 (8 P-core + 16 E-core)	32	P-core 2.0GHz / E-core 1.5GHz	Max Turbo up to 5.8GHz / P-core 5.4GHz / E-core 4.3GHz	36MB	DDR5-5600	Intel® UHD Graphics 770
Core i9-14900K	24 (8 P-core + 16 E-core)	32	P-core 3.2GHz / E-core 2.4GHz	Max Turbo up to 6.0GHz / P-core 5.6GHz / E-core 4.4GHz	36MB	DDR5-5600	Intel® UHD Graphics 770
Core i9-14900T	24 (8 P-core + 16 E-core)	32	P-core 1.1GHz / E-core 0.8GHz	Max Turbo up to 5.5GHz / P-core 5.1GHz / E-core 4.0GHz	36MB	DDR5-5600	Intel® UHD Graphics 770
